Rear Gear Mech Derailleur Hanger – CC1023

Rear Gear Mech Derailleur Hanger – CC1023

£19.98 including VAT

REAR MECH GEAR DERAILLEUR HANGER FRAME DROPOUT
REF: CC1023

Replaces KONA DropoutĀ # V5TT

Replaces Kinesis Dropout # 15

Replaces DB Hanger \ 102

Replaces Vitus Hanger # 26

FROM OUR PREMIUM UPGRADE CNC MACHINED HANGER RANGE
6061 ALUMINIUM BILLET (Aircraft / Aerospace Grade)

( FITTING BOLTS SUPPLIED)

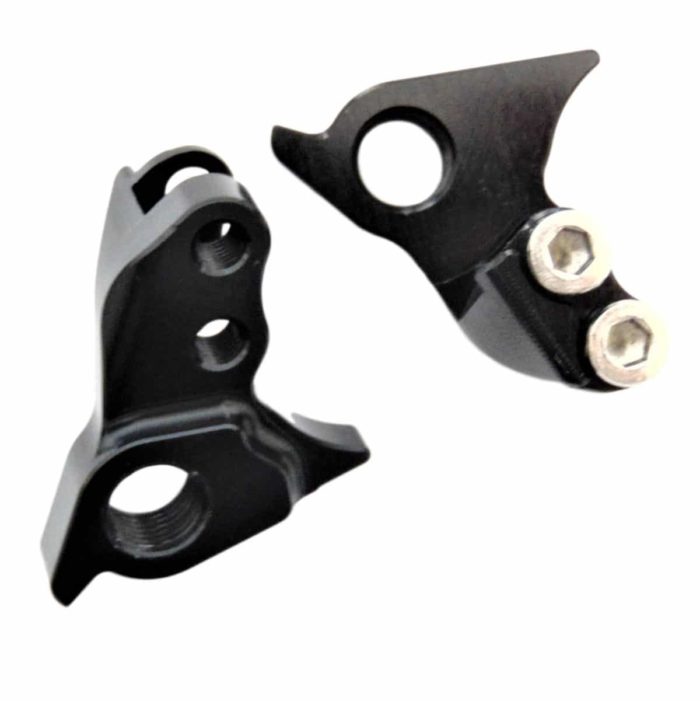

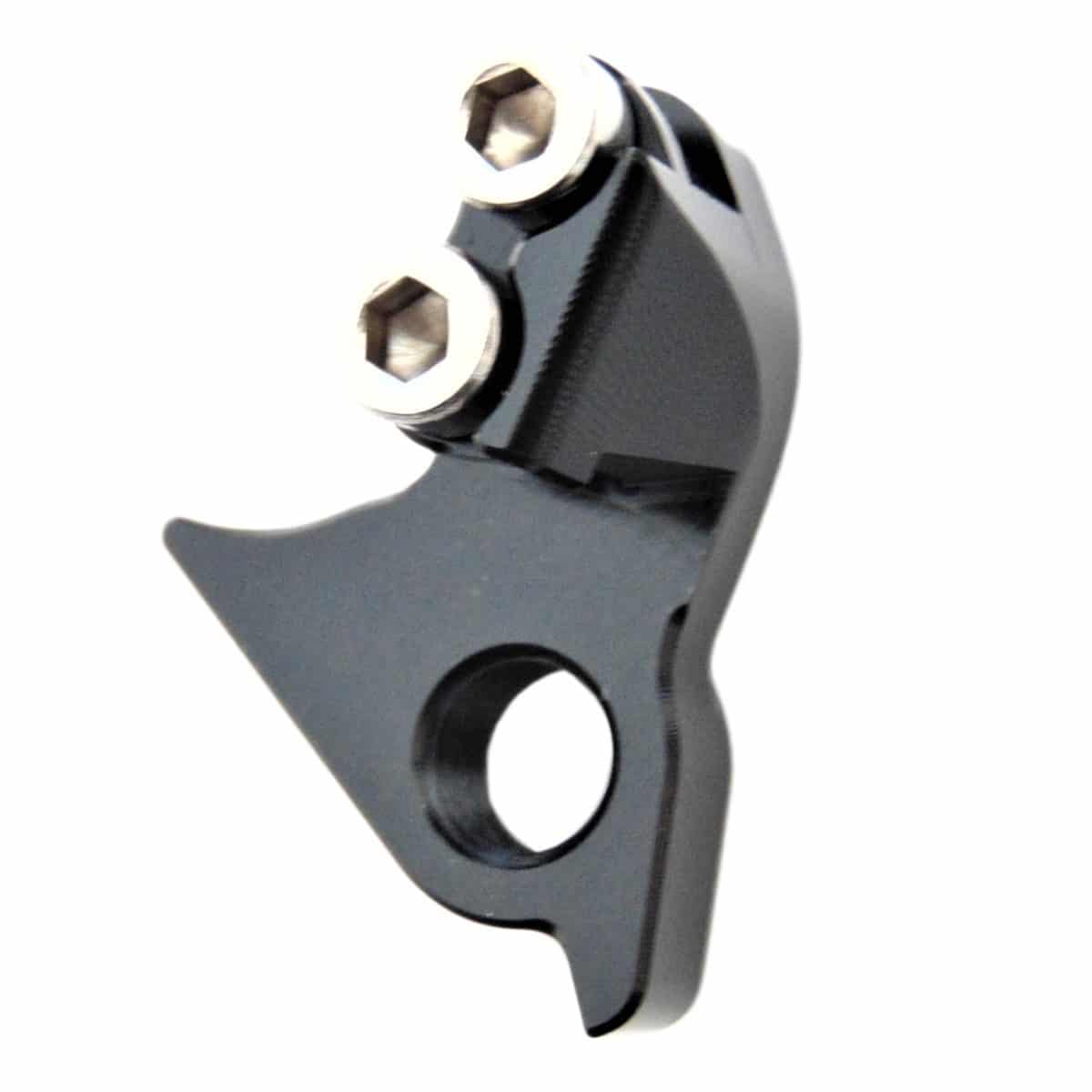

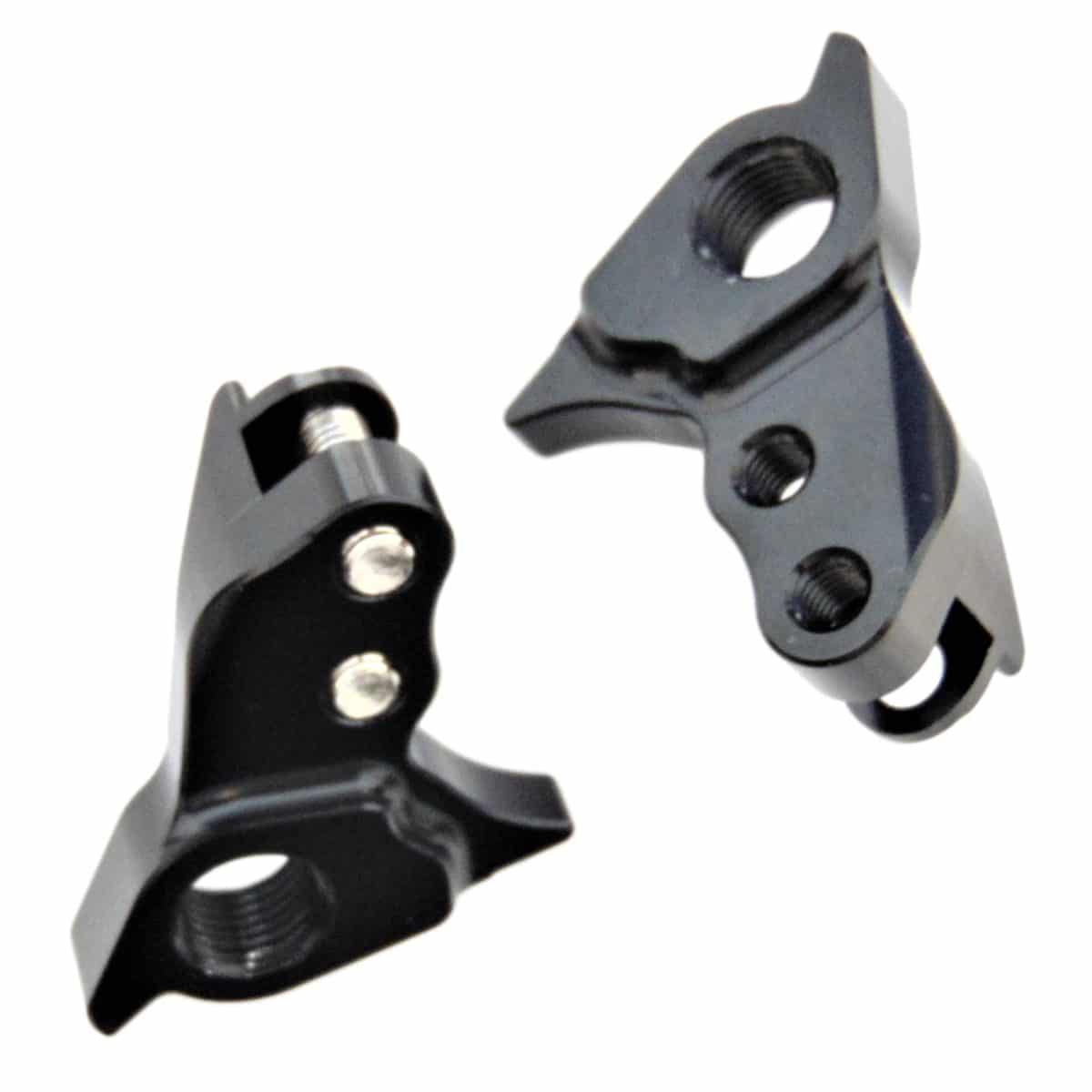

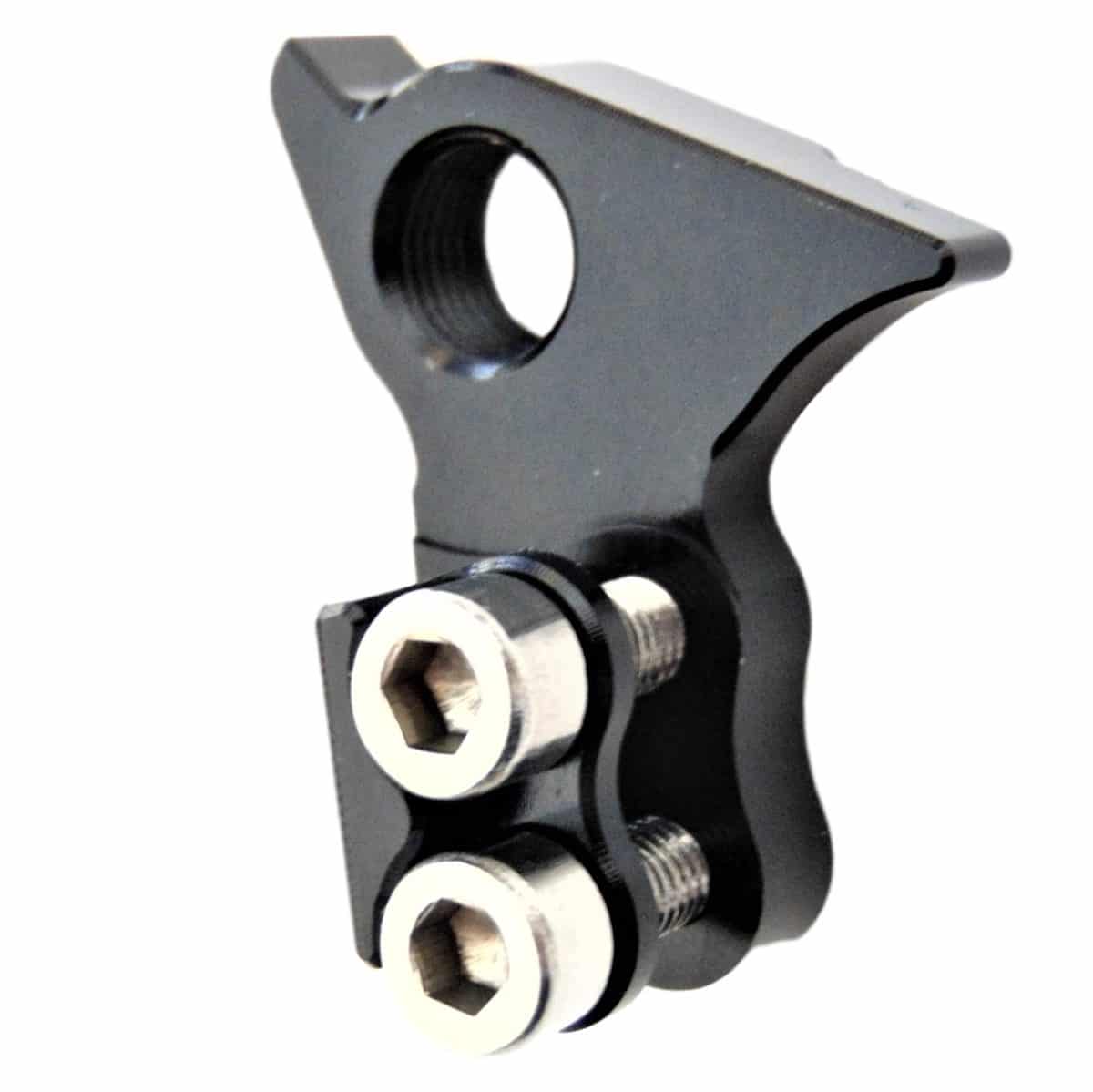

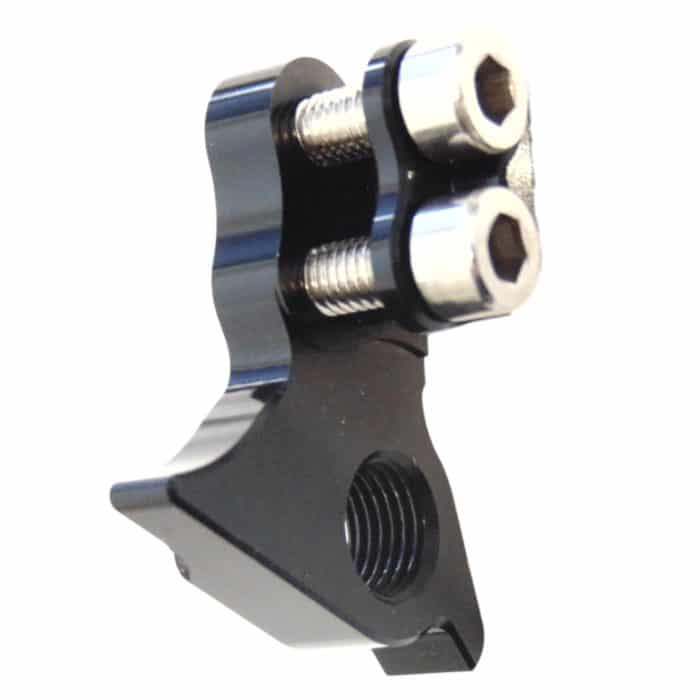

Please compare your existing rear mech hanger to the pictures supplied to ensure the correct fitting before purchase. You can click on/hover over the image to view it in closer detail.

SKU: CC1023 Categories: , , ,

Description

DIAMONDBACK

DB HANGER 102

Arden 3: 2018

Century 1: 2017

Century 2: 2018 ~ 2017

Airen 1: 2017

Airen 2: 2017

Haanjo Comp: 2017

Haanjo Trail: 2017

KINESIS
Kinesis dropout aka # 15

CX Race Evo
RTD
Tripster AT & 4S Disc Thru Axle framesets.

VITUS

Replaces Vitus Hanger # 26

Zenium Alloy frames 2017 – 2019
Energie Alloy frames 2017 – 2019

KONA
aka # V5TT

2014 PROCESS 111
2014 PROCESS 111 DL
2014 PROCESS 153
2014 PROCESS 153 DL
2014 PROCESS 134
2014 PROCESS 134 DL
2014 PRECEPT DL
2014 OPERATOR
2014 SUPERE OPERATOR
2015 PROCESS 111
2015 PROCESS 111 DL
2015 PROCESS 153
2015 PROCESS 153 DL
2015 PROCESS 134
2015 PROCESS 134 DL
2015 PROCESS 167
2015 PRECEPT DL
2015 PRECEPT 200
2015 OPERATOR
2016 ESATTO DDL
2016 HEI HEI RACE, RACE DL
2016 HEI HEI TRAIL, TRAIL DL
2016 KAHUNA DDL
2016 OPERATOR
2016 OPERATOR 27.5
2016 PRECEPT 130
2016 PRECEPT 150
2016 PRECEPT 200
2016 PROCESS 111
2016 PROCESS 111 DL
2016 PROCESS 134
2016 PROCESS 134 DL
2016 PROCESS 153
2016 PROCESS 153 DL
2016 PROCESS 167
2016 SUPREME OPERATOR

ADDITIONAL FIT DATA

2014-2019
Process 111, Process 111 DL, Process 153, Process 153 DL, Process 134, Process 134 DL, Precept DL, Operator, Supreme Operator
2015
Precept 200
2016-2019
Honzo AL, Honzo AL DL
2017-2019
Honzo AL, Honzo AL DL, Big Honzo, Big Honzo DL, Honzo CR, Honzo CR Trail, Honzo CR Trail DL, Honzo CR Race
2017-2019
Hei Hei alloy, Hei Hei DL carbon, Hei Hei Trail DL carbon
2017-2018
Operator 27.5
2018-2019
Process G2 models
